Sketch2Pix @ CDRF

Machine-Augmented Architectural Sketching

Kyle Steinfeld for CDRF, June 2020

Abstract

Presented here is a technical account of the development of an augmented architectural drawing tool Sketch2Pix: an interactive application that supports architectural sketching augmented by automated image-to-image translation processes (Isola, 2016). In this paper, we account not only for the "front-end" experience of this tool, but also detail our approach to offering novice designers access to the "full stack" of processes and technologies required to craft and interact with their own augmented drawing assistant. This workflow includes: the establishment of a training data set; the training and validation of a neural network model; the deploying of this model in a graphic sketching environment; and the configuration of the sketching environment to facilitate a "conversation" with an AI partner. Our approach is novel both in the technical barriers it removes, and in the facilitation of access for creative design practitioners who may not be well-versed in the underlying technologies. The accessibility of our approach is demonstrated by a case study in the Spring of 2020. At this time, a group of novice undergraduate students of design at UC Berkeley adopted Sketch2Pix to produce a series of image-to-image translation models, or "brushes", each trained on a designer's own data, and for a designer's own use in sketching architectural forms. By empowering creative practitioners to more easily shape the configuration of machine-augmented tools, this project seeks to serve as a harbinger of novel modalities of authorship that we might expect in this still-emerging paradigm of computer-assisted design.

Sketch2Pix:
An interactive application for architectural sketching augmented by automated image-to-image translation
(left) AI Augmented Axonometric Sketch, Robert Carrasco, 2020
(right) AI Augmented Landscape Drawing, Sarah Dey, 2020

Code related to this project is available at
github.com / ksteinfe / runway_sketch2pix

Hello.
Today I'd like to offer
    a technical accounting
    of the development of
        an **augmented architectural drawing tool**

Sketch2Pix
    is an interactive application
    that supports architectural sketching
    augmented by automated image-to-image translation

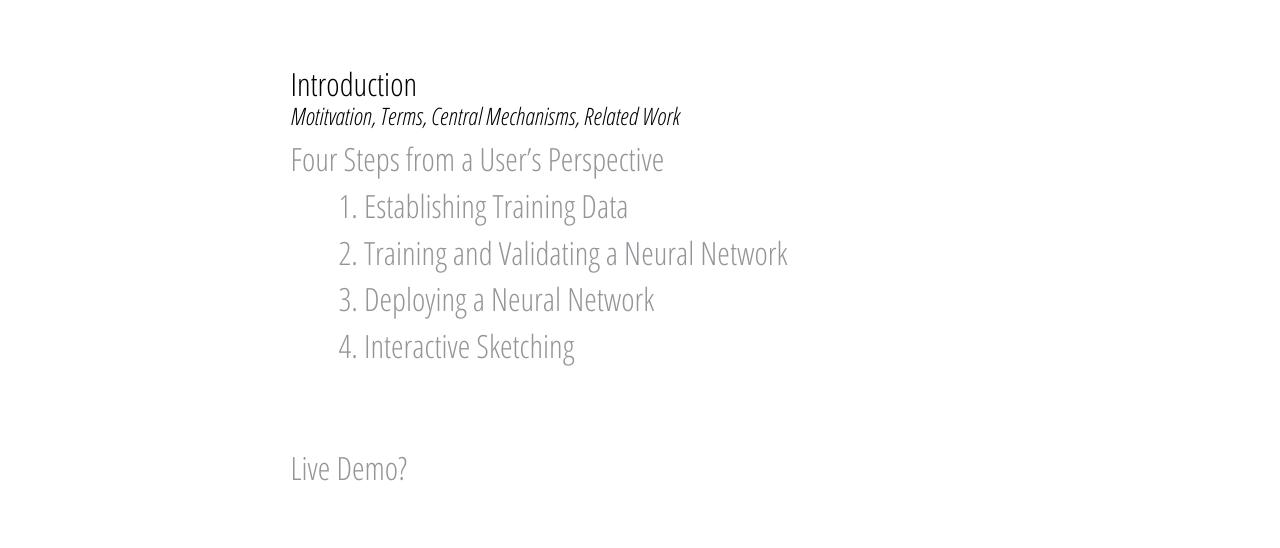

Agenda

While in the paper,
    I detail the technologies,
        workflows,
        and interfaces
    that enable novice creative authors
    to train and wield
    custom-made image-to-image translation models
    in support of machine-augmented sketching.

Here,
I'll cover this material
    only in overview,
and from the perspective
    of a user of this tool.

I'll begin with a brief discussion
    of our motivation for the project,

Along with a description of
    some basic terms
    and the central mechanisms
    of the tool that support creative sketching

At the end of the talk,
    if there's time,
I'll attempt a live demo of the tool.


Introduction

Motivation & Related Work

'Image Generated by a Convolutional Network - r/MachineLearning.'
Reddit user swifty8883. June 16, 2015

The intersection
    of recent advances in machine learning
    and architectural design tools
remains a largely undefined territory.

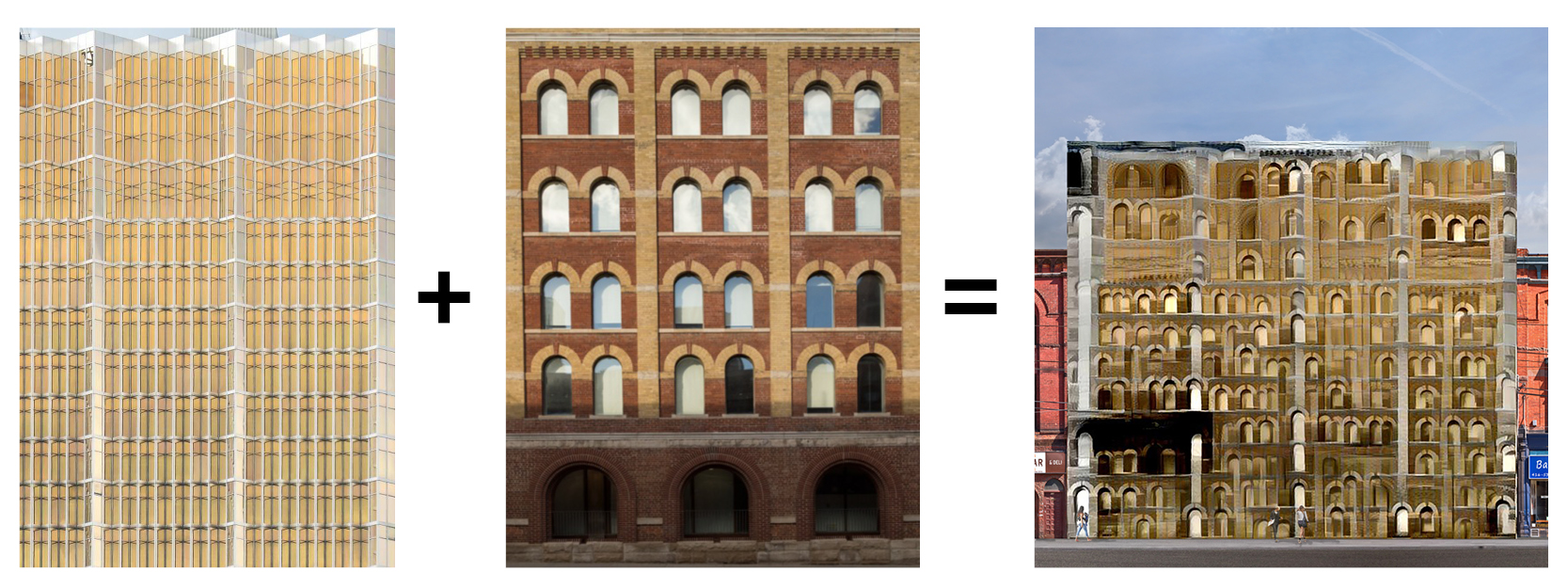

Delirious Facade
A "hybrid" facade combining the overall form of one facade selected from the city of Toronto with the fine features of another
LAMAS, 2016

While it is clear that AI-based design tools
    present fresh challenges
    to the way we understand and use software
    in the service of designing and building,
the nature of these challenges,
    and the character of the related opportunities,
are still uncertain.


Face to Pix2Pix Facade
Koki Ibukuro, 2019

This project represents one step
toward demonstrating an opportunity
that we have identified in brining ML to bear
on better supporting modes of reasoning
central to creative design.


Suggestive Drawing among Human and Artificial Intelligences
Here, an ML model has been trained to understand the transformation from line drawings to a whole range of objects: from flowers to patterned dresses.

While, broadly speaking,
existing paradigms for design tools
have been shown to effectively support
    deductive reasoning,

we assert that
a new paradigm
based on machine learning
will be uniquely suited
to address heretofore unsupported modes
of reasoning about design,
    such as imagistic and inductive thinking.

Animation generated by Artbreeder
Kyle Steinfeld, 2020

This difference is clear
from the intrinsic mechanisms
of the tools involved:

while 3d modeling proceeds
    by composing geometric operations in sequence,

and parametric modeling proceeds
    by assembling elaborate chains of logic,

machine learning models proceed
    by matching patterns drawn
    from prior data.

Hesse: Edges to Cats, 2017
Here, an ML model has been trained to understand the transformation from a line-drawing of a cat to a photographic image of a cat. Once training is complete, this model will attempt to create a cat-like image of any given line drawing.

Just as we would expect an author
    to reason differently
    when wielding a tool of induction
    as opposed to a tool of deduction

        a charcoal pencil as opposed to a calculator

we would similarly expect
    entirely new cultures of design
    to emerge in response
    to paradigm shifts
    in the nature of software.


Proposition One
Nehal Jain, 2020
Our project anticipates just this.

The tool described in this project is thoroughly inductive.


Work from each of the three propositions posted to Instagram
Nicholas Doerschlag, 2020
Rose Wang, 2020
This is clear
insofar as we first invite a designer
to define an indexical relationship
between a hand-drawn mark
and the qualities of an image
it is mapped to,

and only then
to find the "reason"
for these images
in the composition of a drawing.


Scott Eaton, 2019
Scott Eaton is a mechanical engineer and anatomical artist who uses custom-trained **transfer models** as a "creative collaborator" in his figurative drawings.

This is how the artist Scott Eaton works
as we see in this animation

So, in this way,
the project seeks to anticpiate
new cultures of drawing practice
that will arise in relation
to this tool
    and to others that take a similar approach.

from this, we hope to uncover
new modalities of authorship
latent in this still-emerging paradigm
of computer-assisted design.



Terms

  • A
  • "brush"
  • is a neural network
  • trained to perform image-to-image translations
  • ready for use in sketching.
  • In the parlance established by the project,
    a trained neural network
    that is ready for use in sketching
        is termed a "brush",



  • The activation of a brush
  • to perform an image translation,
  • is alternatively termed
  • a "transaction"
  • or an "inference".
  •
    The activation of a brush
        to perform an image translation
        is alternatively termed
            a "transaction"
            or an "inference".




    Central Mechanisms

    The composition of a sketch using four disticnt brushes, activating each multiple times.
    Kyle Steinfeld, 2020

    Embedded in a brush
    is the central mechanism
    of the augmented drawing activity.

    Envisioned as a conversation,
    this activity is expressed
    as a graphic "call and response".

    First,
    a human author composes a drawing
    that may or may not adhere
    to some anticipated graphic convention.

    Next, this "call" image is passed
    to a neural net
    trained to offer a "response" image,
    which is passed back to the sketching environment
    to be displayed to the author.

    If the results are not satisfactory,
    this process may be repeated
    by modifying the original drawing,
    or the author may choose
    to move on to a new portion of the sketch.

    Due to certain technical limitations,
    the current system is constrained
    to transacting with images
    smaller than the typical size
    of most architectural sketches.

    For this reason,
    each call-and-response transaction
    typically represents
    only a portion or segment
    of a larger drawing.

    To mitigate this limitation,
    mechanisms are provided
    to allow for the tiling and layering
    of multiple response images
    in a single drawing.




    Thank You to the Students at UC Berkeley

    We acknowledge that this research is closely related to an upper-division undergraduate research studio offered at UC Berkeley in the Spring of 2020. This studio was instructed by the author, and attended by an inspiring group of sixteen students. We would like to thank the students of this course for the generous willingness to participate in the case study described here. This resilient group of young designers faced difficult circumstances with grace, and adopted unfamiliar methods with enthusiasm.

    This research is closely related
    to an upper-division undergraduate research studio
    offered at UC Berkeley
    in the Spring of 2020.



    Four Steps from a User's Perspective

    I'll now offer a very quick overview
    of the specific
        tools, methods, and workflows
    that constitute the Sketch2Pix
    augmented sketching tool.

    Since most of the technical details
    are covered in the paper,
    here I'll speak solely to the experience of the user.

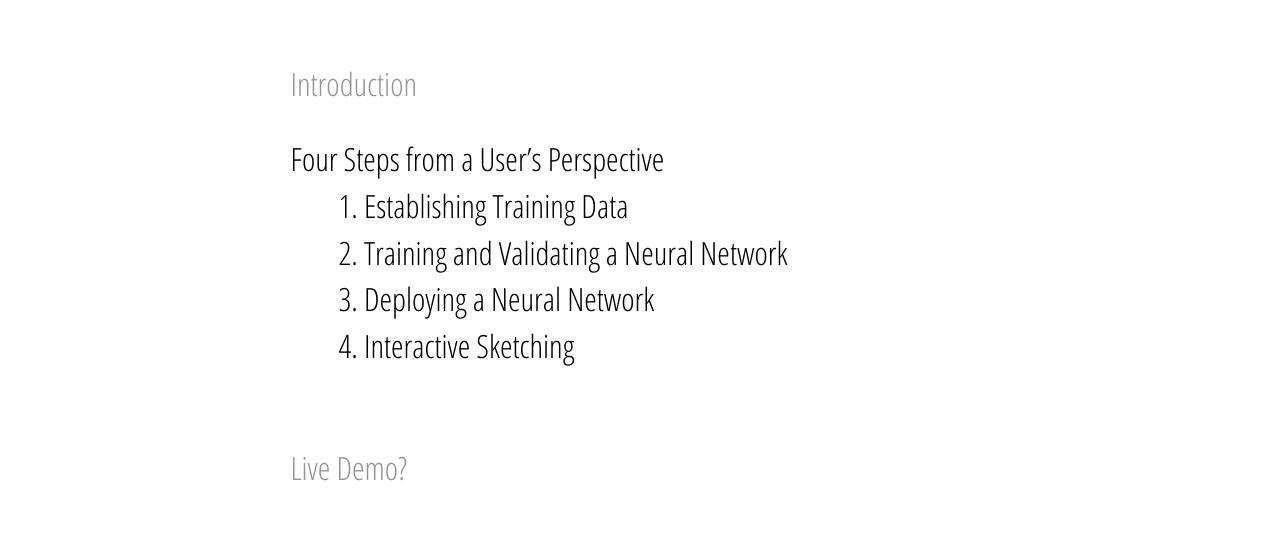

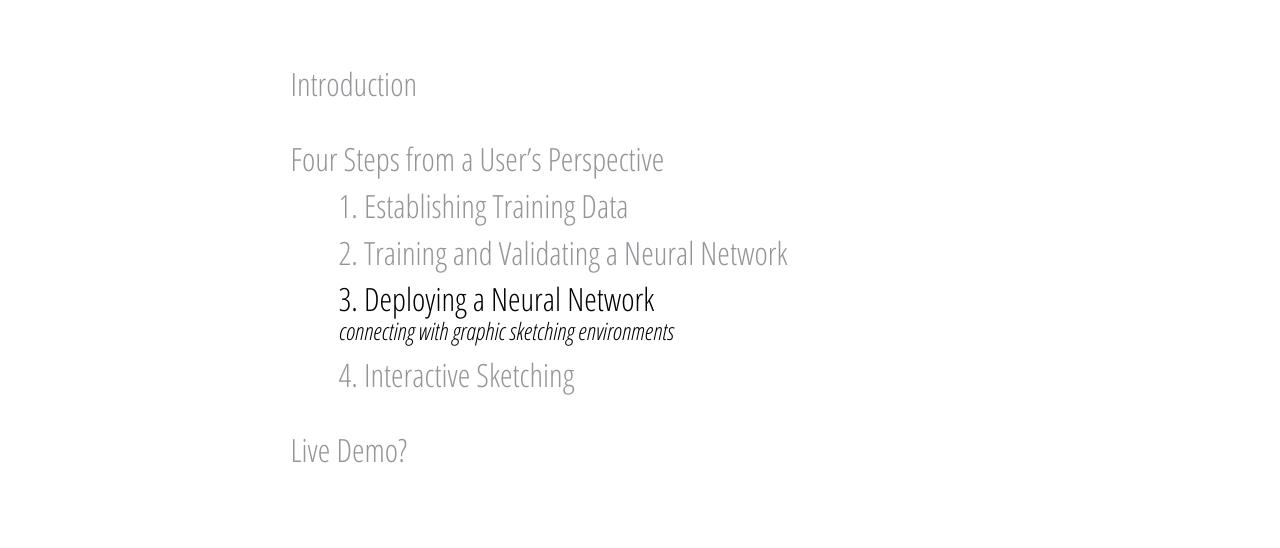

    Agenda


    So,
    assuming you're someone
    who would like to make their own
    augmented drawing partner,
    there are four steps required:

    1. The establishment of a training data set.
        for us, data sets are derived
        from a combination of 3d scanning
        and texture modeling,
        a process supported
        by a collection of user-friendly scripts.

    2. The training and validation of a neural network model.
        This is done through
        a GPU cloud computing environment,
        and is supported by
        a collection of user-friendly python scripts.

    3. The deploying of a trained model
    to allow communication
    with a graphic sketching environment.
        This is achieved through
        a model hosting and distribution service
        called "RunwayML".

    4. The configuration and customization of the sketching environment
    to facilitate a "conversation" with an AI partner.
        This is achieved
        through a bespoke plugin
        for Adobe Photoshop.



    Agenda

    The most critical step
    in crafting a Sketch2Pix brush
    is the establishment
    of a set of data on which to train.

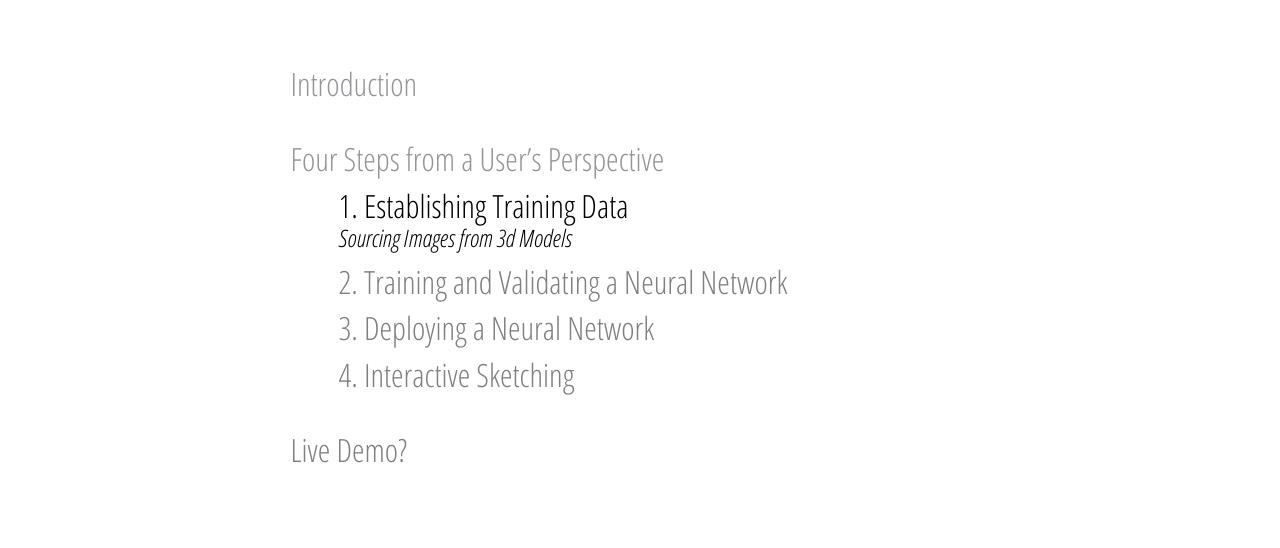

    Establishment of Training Data

    Here,
    the central operation of a brush is established,
    as expressed by the mapping
    between a graphic "call" provided by a human author
    and the desired image "response" of the neural network.

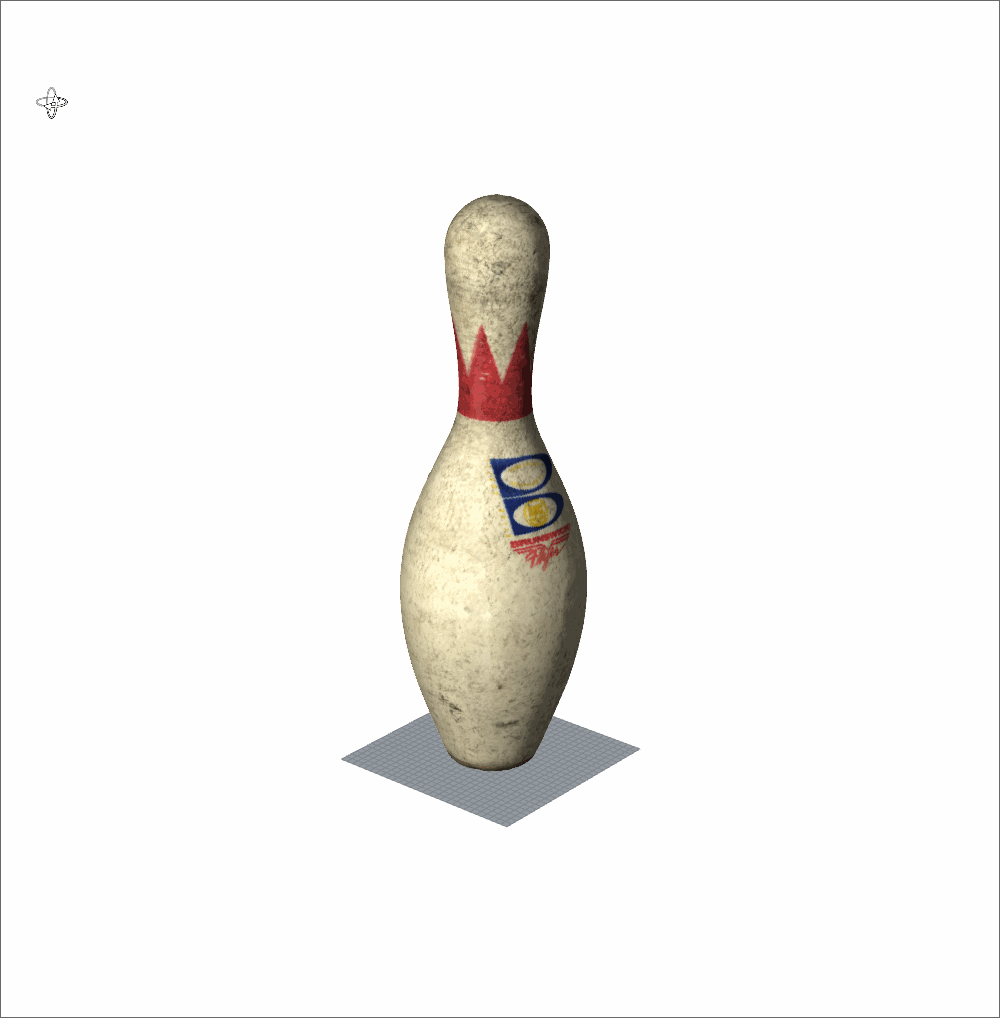

    A Sketch2Pix "brush" trained on images of a bowling pin.


    Because a data set of substantial size
    is required for training,
    pipelines are here developed
    for the establishing of training data
    using texture-mapped 3d models.




    With a training set established,
    the next step in crafting a Sketch2Pix brush
    is the training and validation
    of a neural net.

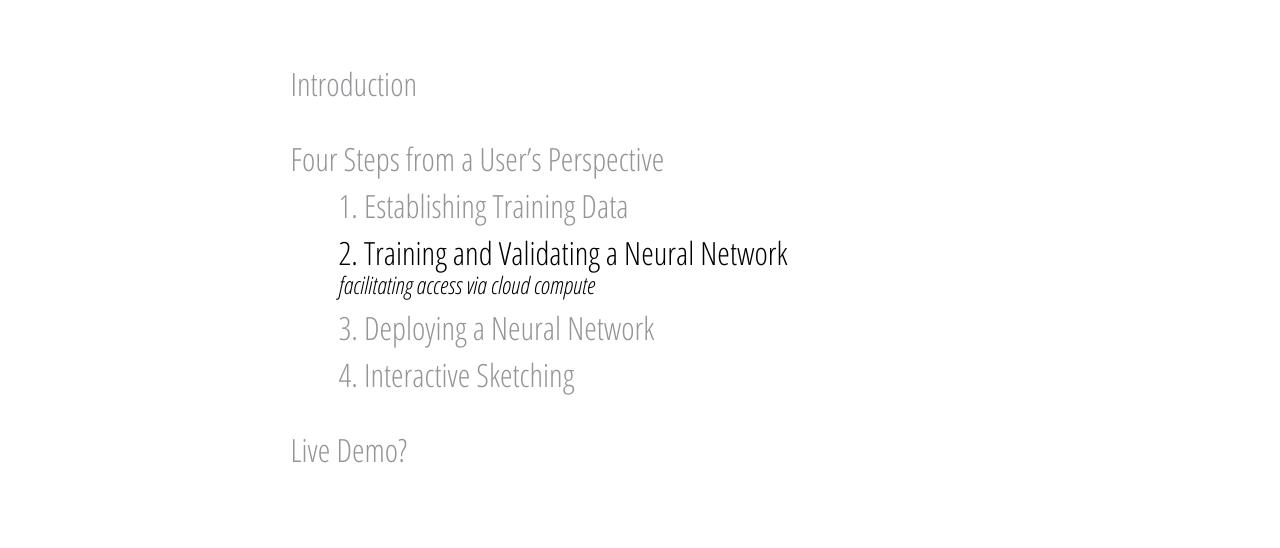

    Training and Validation of a Neural Network

    Because most novice designers
    lack direct access to computing resources and expertise
    necessary to complete this training
    in a reasonable time,
    we provide guidance and resources
    for completing this step
    in a cloud computing environment.




    Having trained a valid Sketch2Pix model,
    the next step is the deploying of this model
    to a hosting environment
    that facilitates connection
    with a graphic sketching environment.



    Deploying a Trained Model

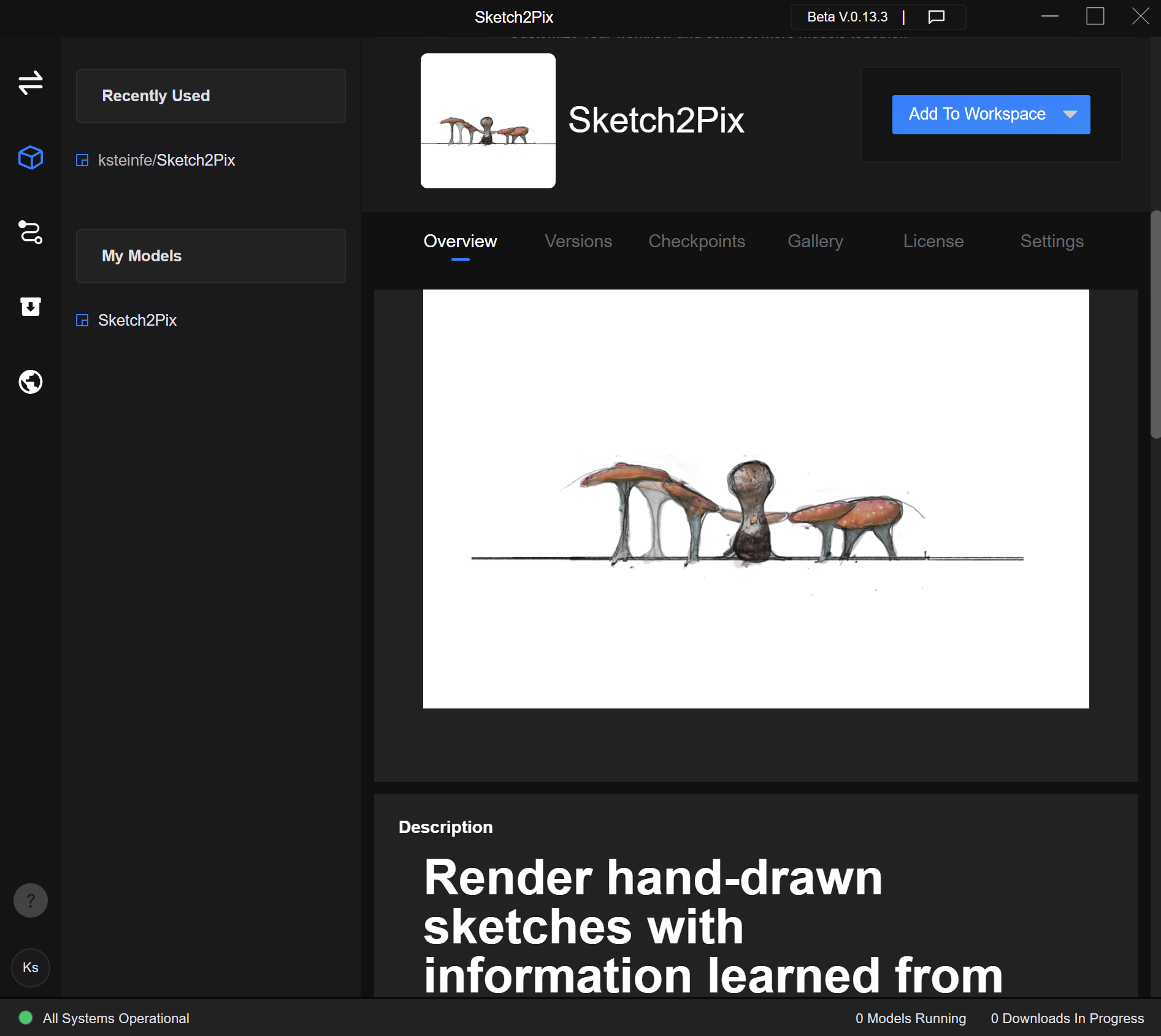

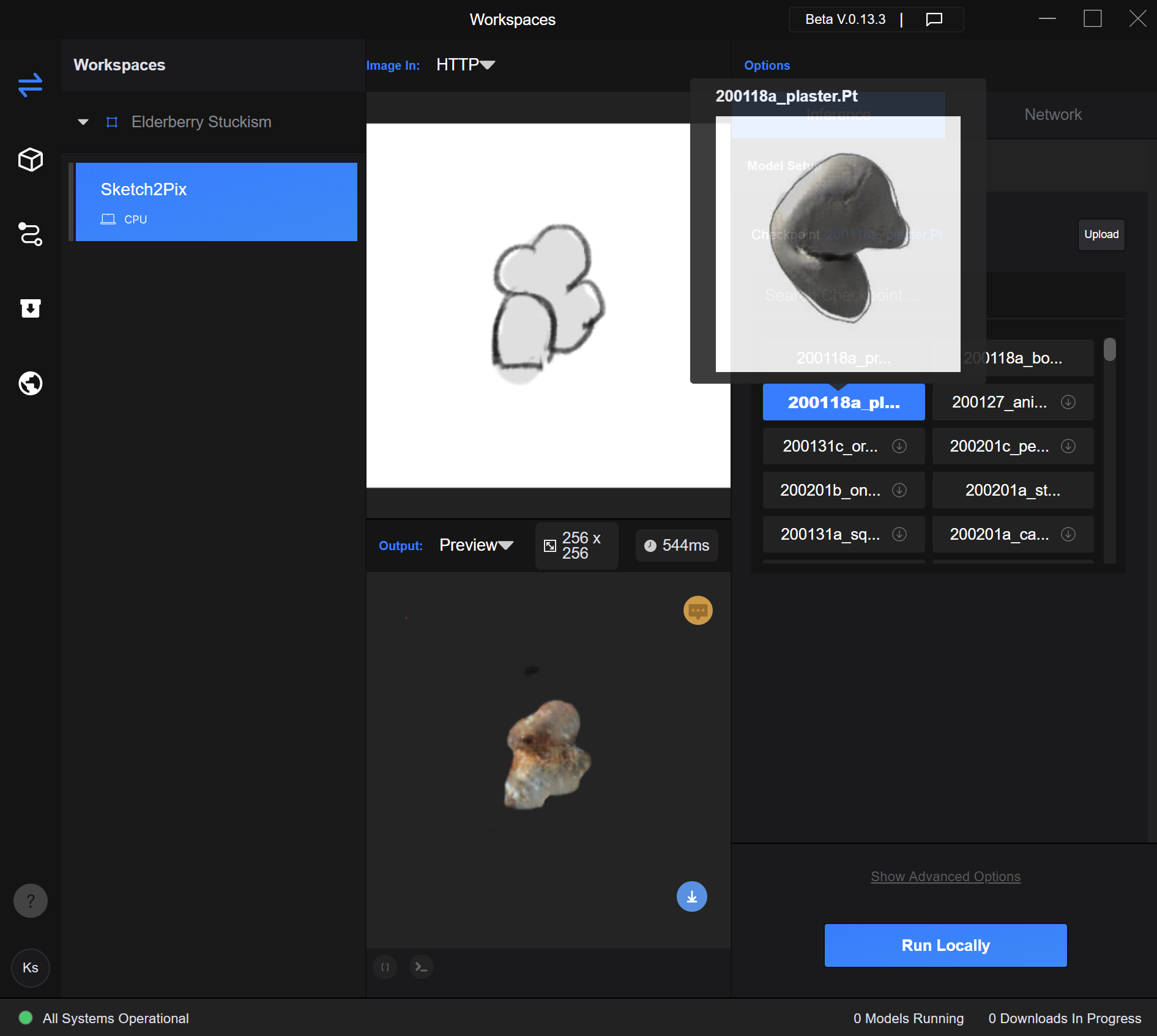

    Screenshots of the RunwayML model hosting and distribution interface.
    While in the recent past,
    such a step would present considerable difficulty
    for a novice user,
    the recent introduction
    of model hosting and distribution services
    have significantly eased this burden
    and lowered barriers of entry.

    Sketch2Pix is registered with one such service:
        RunwayML

    Given this service,
    hosing a model is a relatively trivial process
    from the user's perspective.



    With a model deployed
    to a hosting and distribution service,
    the final step in developing a Sketch2Pix brush
    involves the mechanisms
    of interacting with this model,

    which may now be regarded
    as a functional "drawing assistant".



    Interactive Sketching

    The details of this collaborative drawing activity
    are largely guided
    by the features of the interface developed
    for the given graphic sketching environment.

    A large amount of development time
    was spent noodling
    on how to get Adobe Photoshop
        to interact with a hosted model
    in a way that is supportive of architectural sketching.

    I would just note here that
        how to best structure
        an successful interaction
        with an AI assistant
        is a current topic
        in HCI research.


    From this perspective,
        we strongly value the iterative development
        of small-scale graphics
        in the service of larger compositions.

    This is because,
        in our view,
    ease of iteration is essential
    to facilitating the feeling
    of a "conversation"
    with an AI partner.

    - - - - -

    One may see this value reflected in the decision to integrate alpha-channel generation into the Sketch2Pix model itself, as transparency is necessary to effective layering.

    We also see it in the way we've handled the Photoshop layer structure, and in the protocols for returning "response" images.

    We encourage our users to, at the start of a collaborative sketching session, establish two layer groups in Photoshop: one that will contain the hand-drawn "call" images, and a second that will house those "response" images returned by the brush.

    Rather than replacing the user-drawn image with the computer-generated one at each transaction, our application returns generated image to its own Photoshop layer, and links the source layer to the generated layer.

    Then, if the user modifies their hand-drawing, the generated image may be updated rather than duplicated. This pattern of user interaction is intended to encourage the sort of iterative development that is commonly practiced in design drawing.




    Live Demo?

    Results and Reflection

    Figs. 1.9 - 1.11 Augmented drawings authored with the Sketch2Pix tool. From left to right: Daniel Barrio, Can Li, Nicholas Doeschlag, 2020.
    Figs. 1.12 - 1.14 Augmented drawings authored with the Sketch2Pix tool. From left to right: Tina Nguyen, Robert Carrasco, Leo Zhao, 2020.
    In this talk
    I've presented the mechanisms
    of a tool that supports
    **machine-augmented architectural sketching**

    an activity that we see
    as a special case
    of **inductive design thinking**.


    First is a reminder
    of the central role
    of iteration in design,
    and of the small discoveries we made
    on how to instrumentalize iteration
    in the user interface of design tools.

    We expect that ease of iteration
    will become even more essential
    in facilitating the feeling
    of a "conversation" with an AI partner.


    Second is an indication
    of the challenges that lie ahead
    int the shift from geometric / logical modeling activities
    to those required by training an ML model.

    We see such a challenge
    in the role of the 3d models
    produced in the service of training.

    Here, users must shift their thinking
    away from models playing a directly representational role,
        where the model stands in
        for the building we envision.

    Instead, these models play a loosely indexical role,
    where the model defines
    the relationships and patterns
    to be learned by a neural network,
    which prefers information
    such as colors and patterns
    over forms and organizations

    We expect to find many such differences
    between traditional forms of computer-aided design,
    and emerging forms based on ML.

    Thank you.
